Privacy Glass | Innoglass Sdn Bhd
Innovative development in safety glass for both architectural and automotive glass.

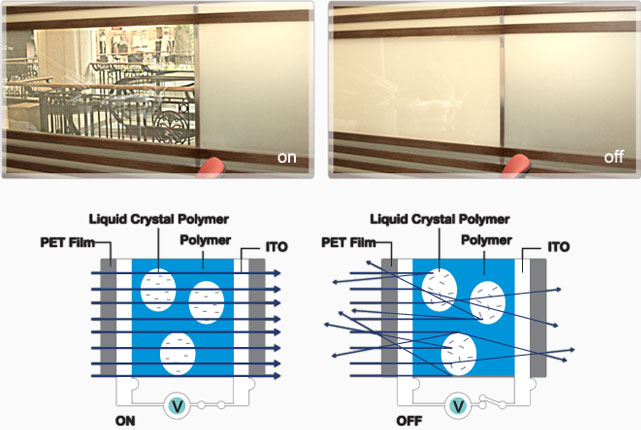

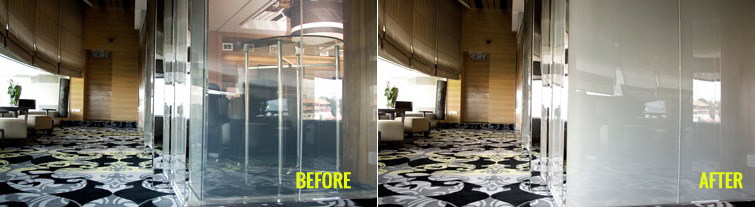

Windows normally allow you to see as well as to be seen. However, sometimes, it maybe desirable to be shielded from prying eyes. Privacy Glass offers you this privacy at the flick of a switch. A unique technology of privacy glass allows it to be switched from an ordinary-looking clear glass to a translucent glass, ensuring optimal vision control. All it takes is a simple electrical switch as turning the lights on.
Benefits
- Change to clear or translucent instantly and uniformly over the entire surface area
- Improvement in user’s comfort and privacy
- Protection of interior furniture and other valuable items from UV damage
- Safety & security Operate off of ordinary AC Voltage (110VAC / 240VAC)
- Require very little power(less than 7.0 watts per square meter)
- Superior optical qualities relative to other privacy glass products
Application
- Architectural windows
- Skylights
- Interior partitions
- Glass covering products

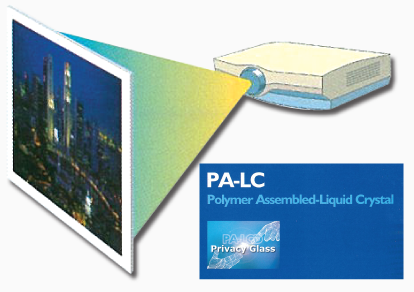

Privacy Glass as a rear projection screen
The window can be a innovative and dynamic advertising board. The interior can be open during working hours by turning the window transparent. And the window can be a dynamic advertising board by turning the window off When this switching function can be operated automatically by timer or sensor.
Benefits
- High resolution
- Large viewing angle
- Projection equipment is hidden behind the screen (rear projection)
- High acoustic performance : avoid noise from the projector side
- Eyecatcher screen : transparency at will (ON)
- Safety and security : laminated glass
- Easy to clean
- Cost-effectiveness realtive to other display media
Application
- Front shop
- Façade
- Conference Rooms
- Control Rooms
- TV studio
- Exhibitions
- Showrooms
- Boardrooms
Technical Specification
Product Data Sheet
| Hardware | Dimension | Remarks | |
| Glass Thickness(mm) | Width x Height(mm) | ||
| Privacy Glass | 6.5 | Max 1200 x 1500 | Standard Colour: Milky White |
| Min 210 x 297 | |||
| 10.5 / 12.5 | Max 1200 x 3000 | ||
| Min 210 x 297 | |||
Technical Specification
| Dimension | Mode | Remarks | |
| Environmental | Storage & Operation | ||
| Optical Properties | Operation Mode | ON OFF | Transperent Opaque |
| Parallel light Transmittance | ON OFF | 75 ± 3% 10 ± 1% |
|
| Sunlight Transmittance | ON OFF | 80 ± 1% 60 ± 1% |
|
| Haze | ON OFF | 2 ± 1% 80 ± 3% |
|
| UV blocking | More Than 98% | ||
| Electrical Properties | Operating Voltage | 110VAC | |
| Frequency Range | 50 or 60 Hz | ||
| Power Consumption | 7 W/m² for 110V | ||
| Switching Speed | Tr.100ms Td.400ms | ||
| Test Item | Test Condition | Result |
| Switching | On (1sec) / Off (1sec), 220 VAC, 3 Million Times |
OK |
| High Temperature | 70° / 14 Days | OK |
| High Temperature High Humid |
50°, 95% RH, 14 Days | OK |
| Low Temperature | -20° / 14 Days | OK |
| Heat Cycle | -20° / 70°(2 Hrs/Cycle) / 200 Cycles | OK |
| Weathering | KS L 2004 | Passed |
| Heat Resistance | KS L 2004 | Passed |
| Freefall Sphere | KS L 2004 | Passed |
| Shot Bag | KS L 2004 | Passed |
